Rhino Product

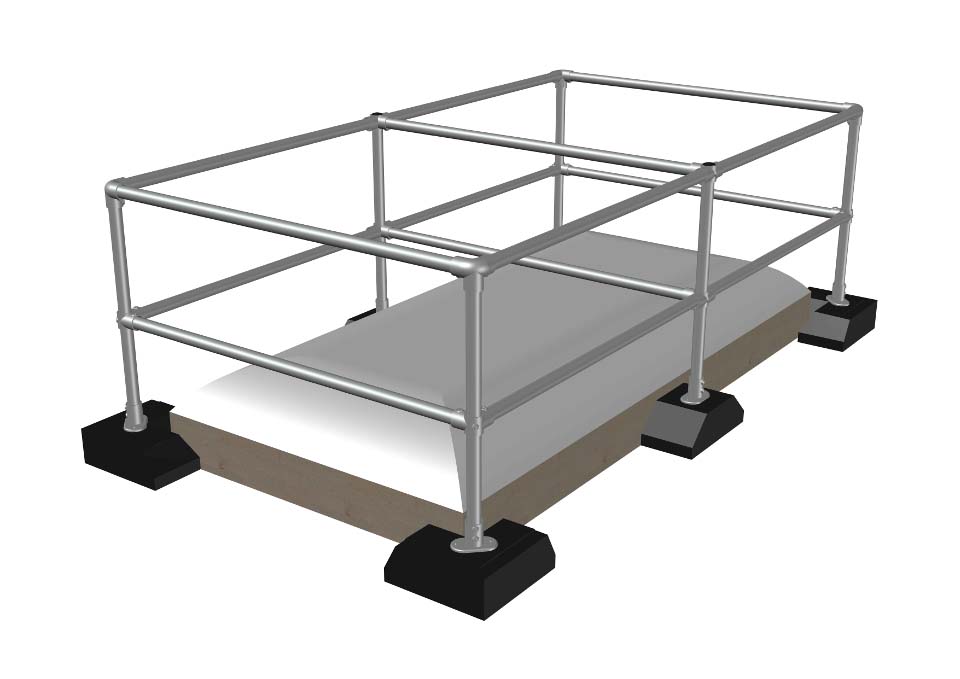

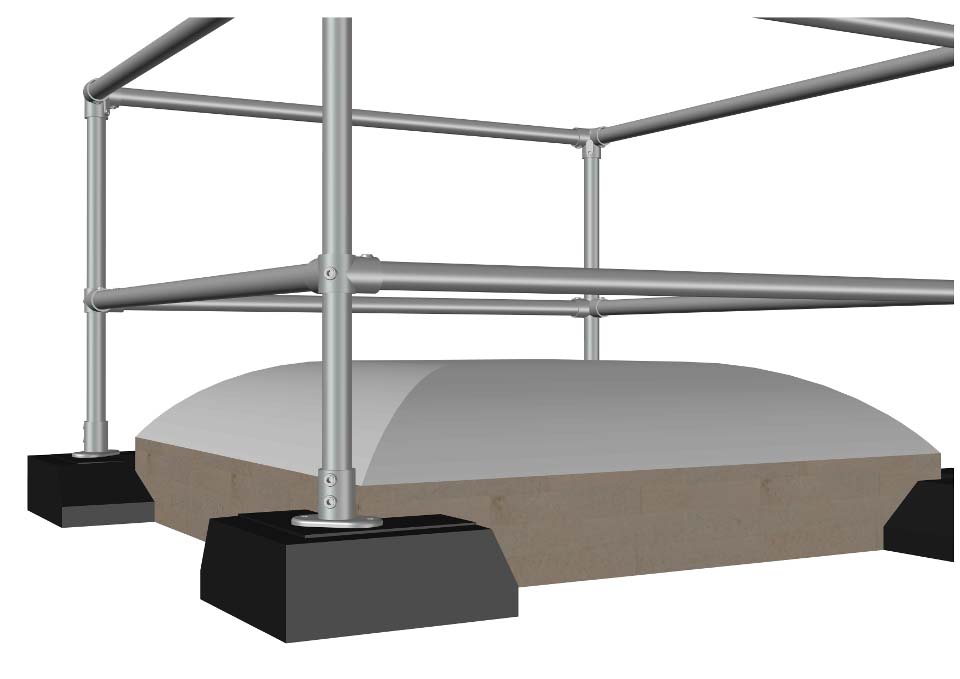

Rooflight Protection System

Our freestanding rooflight protection system is a weighted roof safety railing system that does not require any mechanical fixing into the roof surface. This system has been designed and manufactured to fully comply with current H.S.E regulations, as well as roof guardrail requirements.

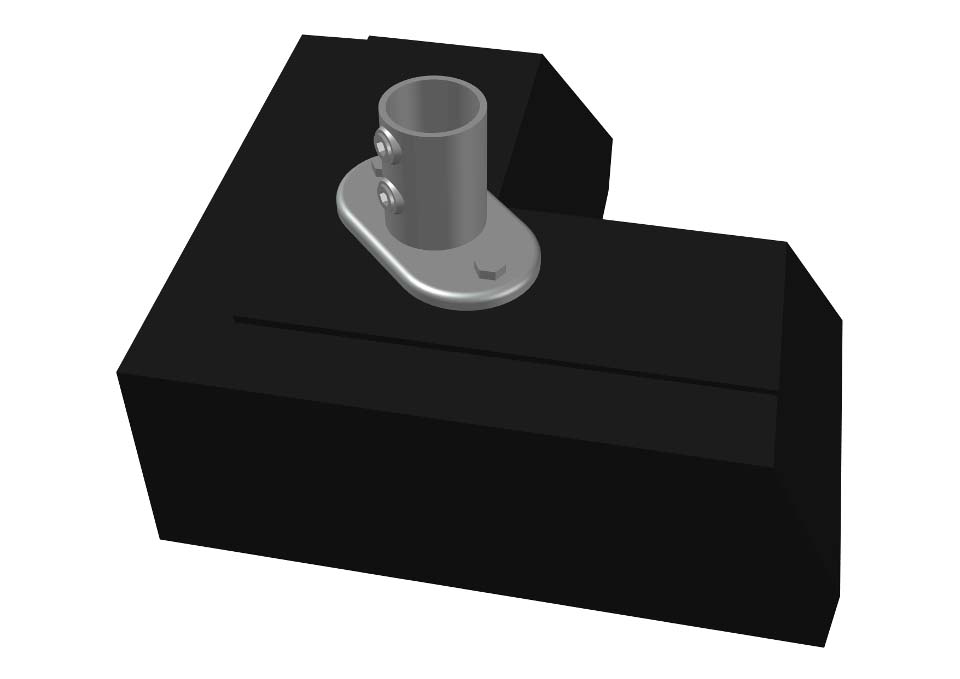

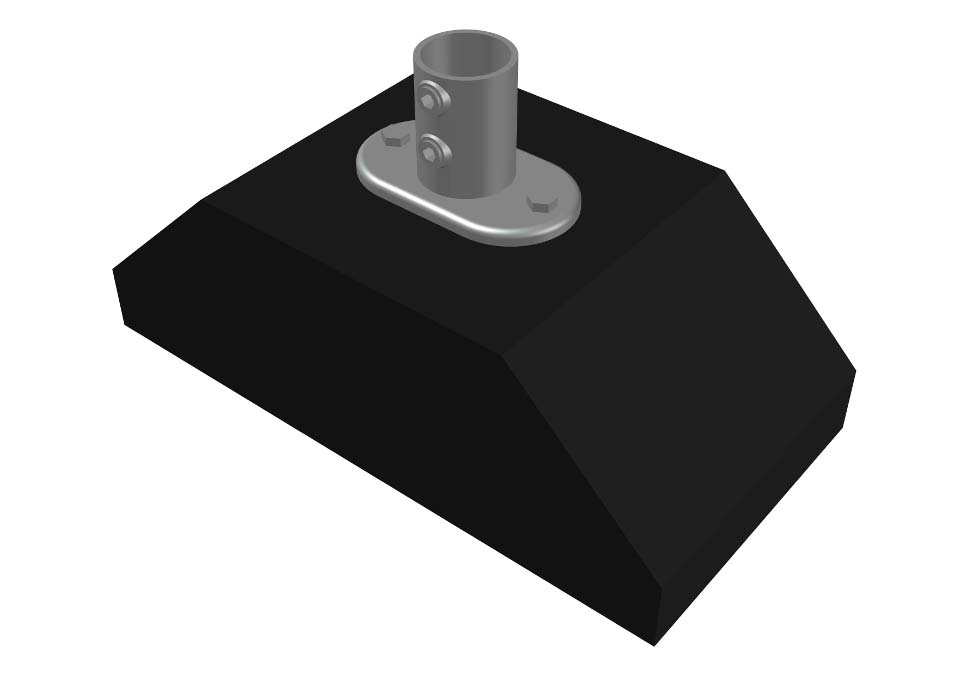

It is assembled using 1.5mm x 48.3mm external diameter galvanised steel tube, and galvanised malleable cast iron fittings. The weighted feet are manufactured from 100% recycled PVC compound with the fixing screws manufactured from zinc-coated steel.

View more Rhinorail Edge Protection Systems here

Key Features

  • No drilling
  • Fast and easy installation
  • Modular components for a bespoke design
  • Galvanised steel with anti-corrosion coating

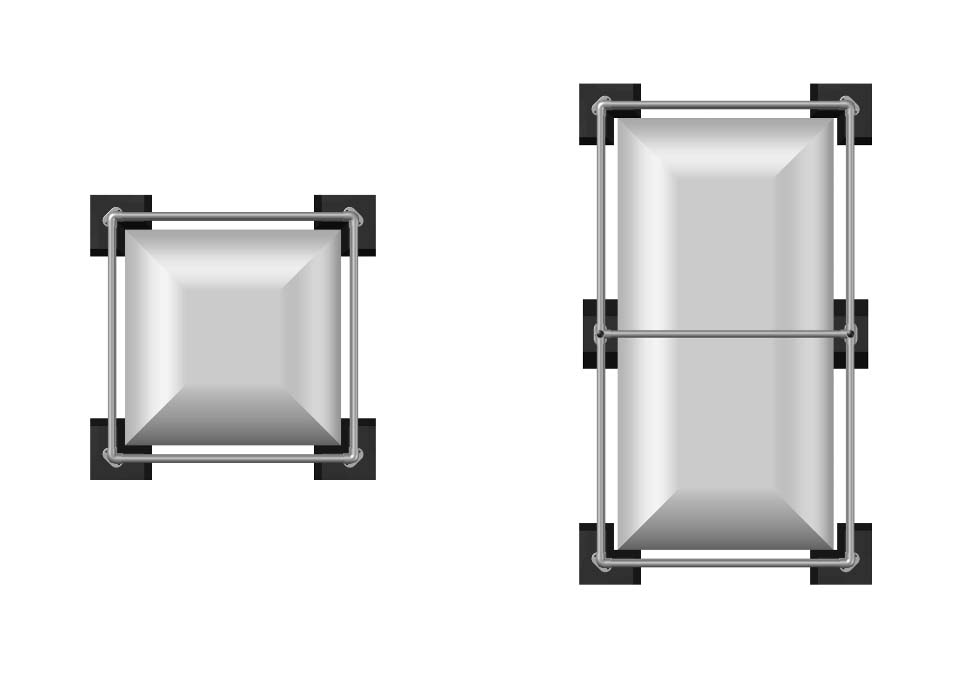

Rooflight Protection System Thumb
Rooflight Protection System 2
Rooflight Protection System 3

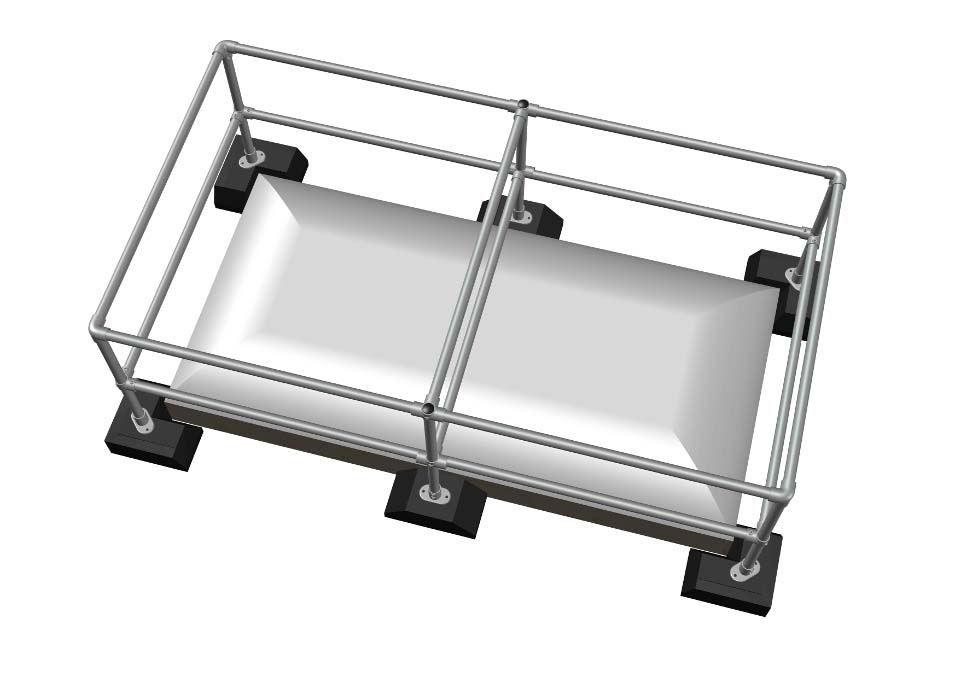

Rooflight Protection System 4
Rooflight Protection System 5

Available Options

  • Powder Coated to any RAL Colour Code required.

Compliance Standards

  • HSG-33 Health and safety in roof work.
  • HSE INDG 284 “Working on roofs”.
  • EN ISO 14122 Part 3.
  • EN 13374-2013 Class A.
  • BS 6399: Part 2 1995 Wind Code.

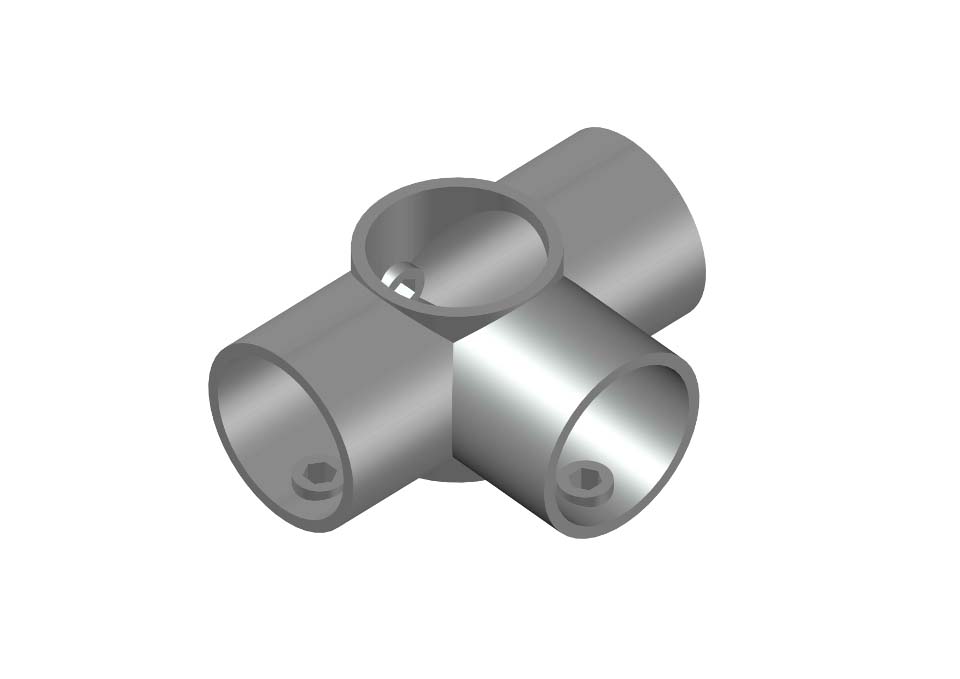

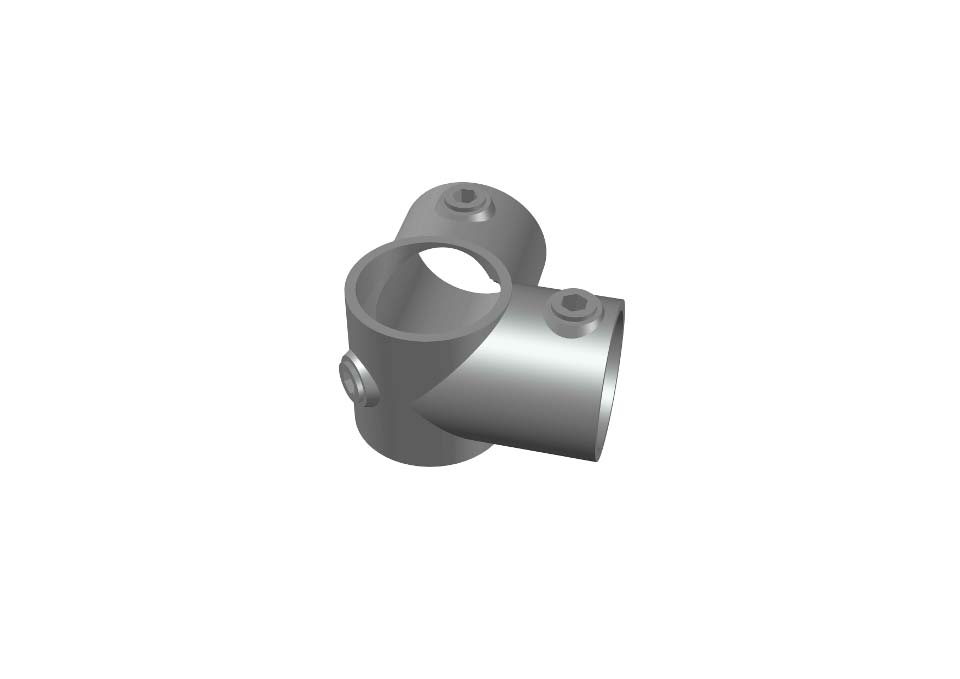

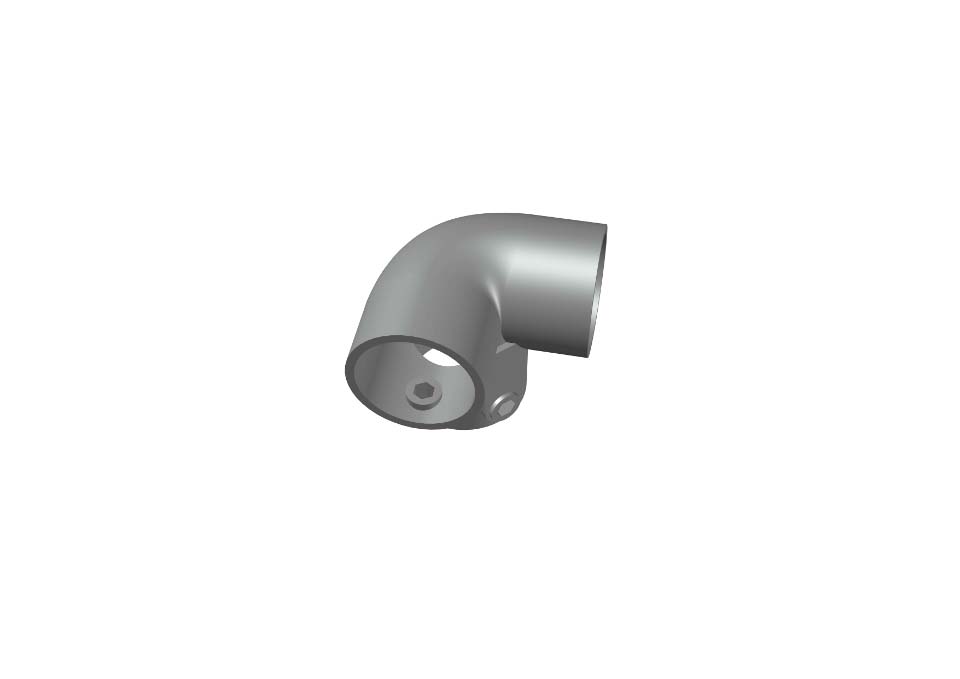

Individual Components
